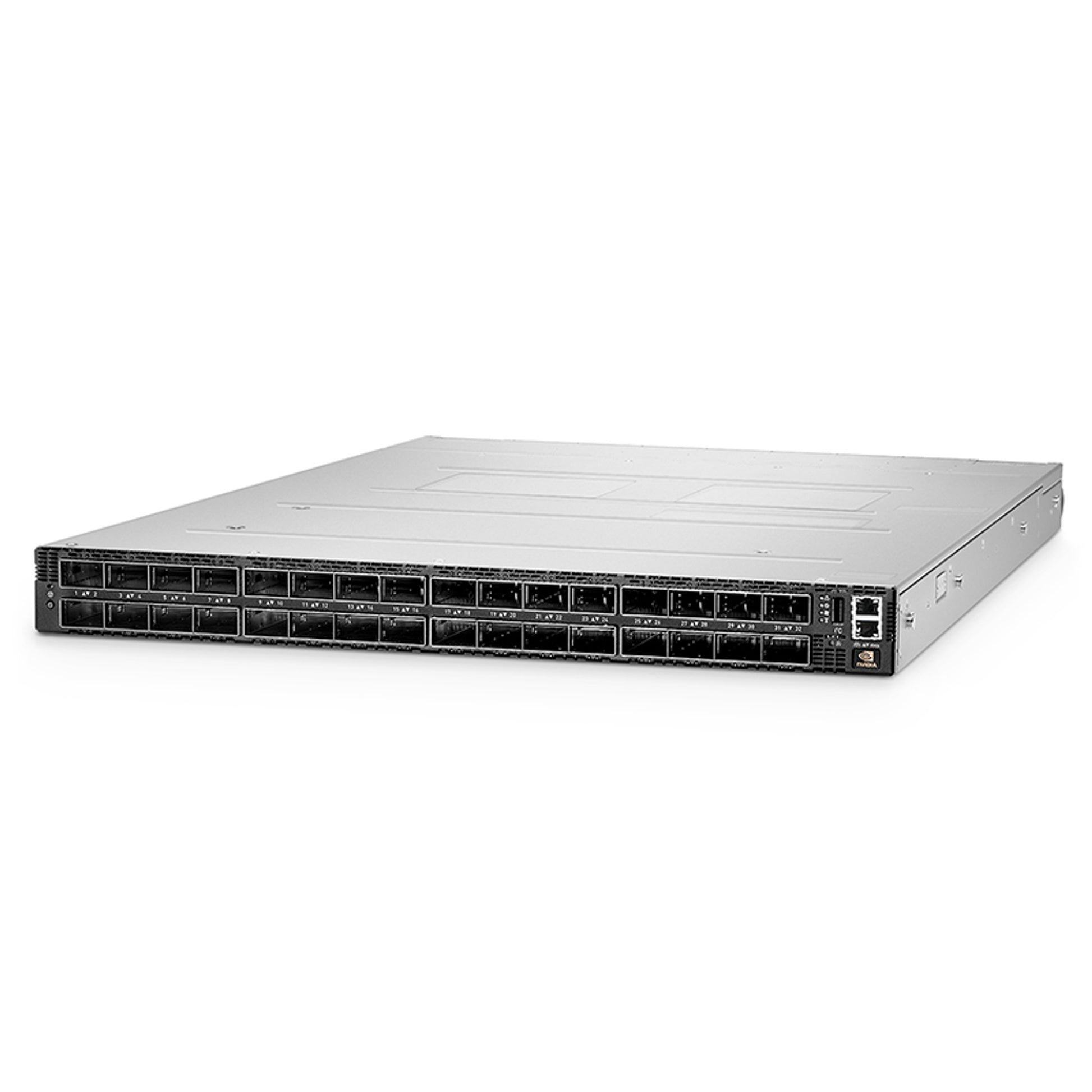

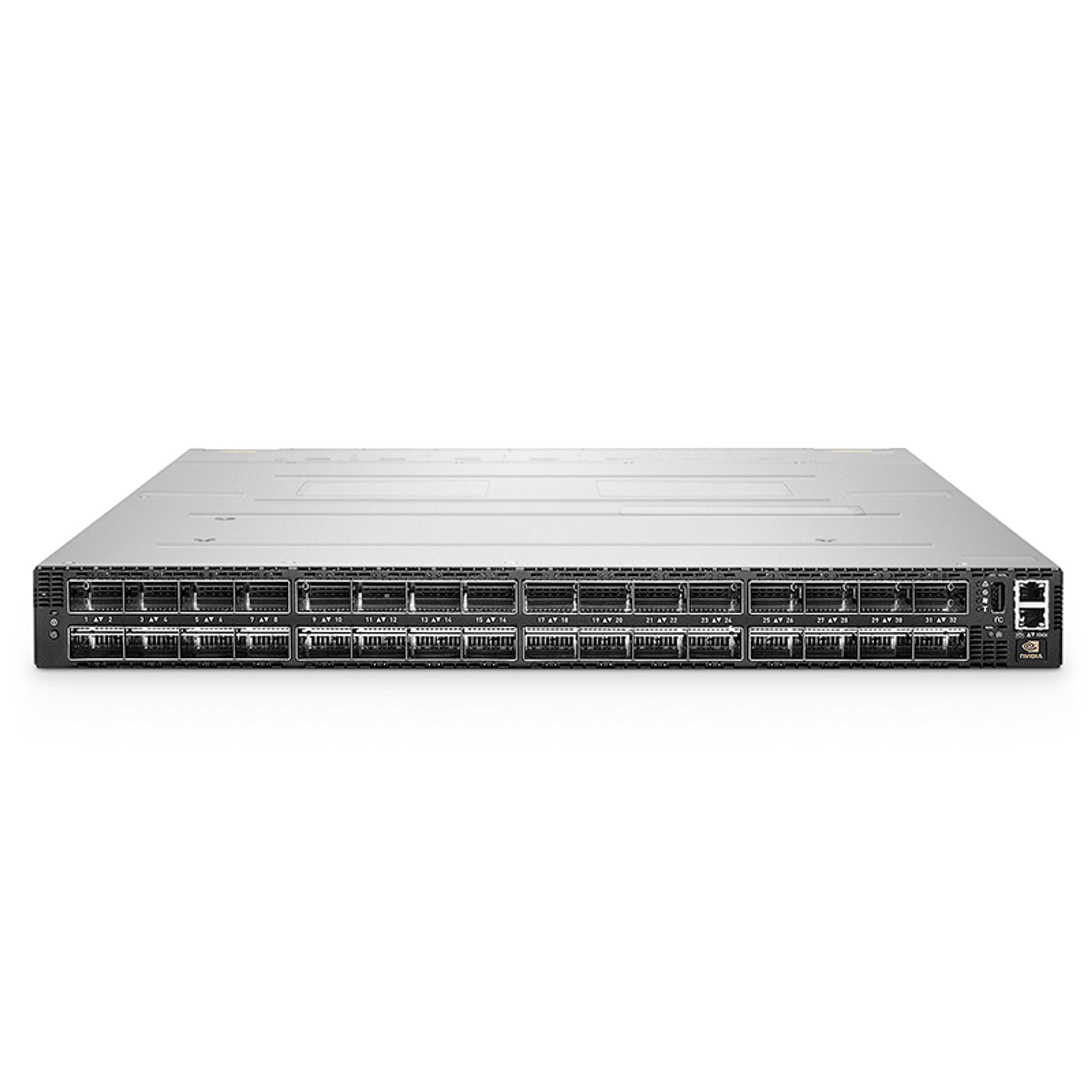

MQM9700-NS2F NVIDIA® 64-Port NDR 400G InfiniBand Data Center Switch, 32 OSFP Ports, Managed, x86 Dual Core, NVIDIA Quantum™-2 Chip, P2C Airflow
Scaling Out Data Centers with 400G InfiniBand Smart Switches
The NVIDIA Quantum-2-based QM9700 and QM9790 switch systems deliver an unprecedented 64 ports of 400Gb/s InfiniBand per port in a 1U standard chassis design. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity. Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP).
Product Highlights
- 32 OSFP Ports, Can Use Breakout for 64× 400GbE or 128× 200GbE
- 25.6 Tb/s Aggregate Switch Throughput, More Than 66.5 Billion Packets per Second

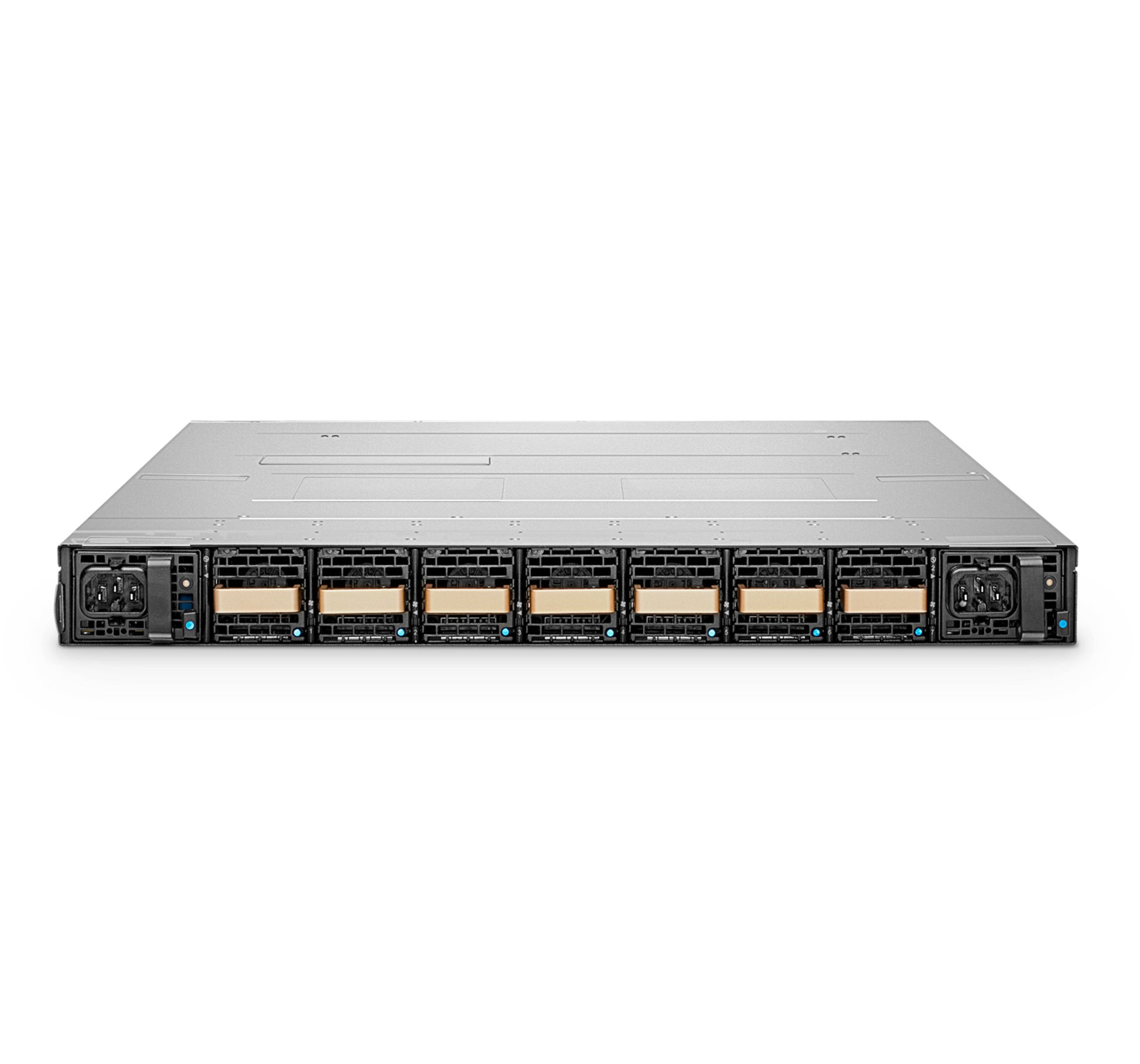

- 1+1 Hot-swappable Power Supplies, 6+1 Hot-swappable Fans
- Support SHARPV3, Adaptive Routing, Congestion Control and QoS, Self-healing Networking
- Support Fat Tree, SlimFly, Dragonfly+, Multi-dimensional and Other Network Topologies
- Support CLI, WebUI, SNMP, JSON Interface, for Flexible Operation
Specifications
Manufacturer |
NVIDIA |
Ports |
64 x NDR 400G 32 OSFP Connectors |
CPU |
x86 Coffee Lake i3 |
Switch Chip |
NVIDIA QUANTUM-2 |
Software |
MLNX-OS |
Switching Capacity |
25.6 Tbps |
Typical Power Consumption |
747w |
System Memory
|
Single 8GB
|
Max. Power Consumption |
1703w |
Storage |
M.2 SSD SATA 16GB 2242 FF |
AC Power Supplies |
1+1 Hot-swappable |
Voltage |
1x/2x, 200-240VAC 50/60Hz 10A |
Fan Number |
6+1 Hot-swappable |
Airflow |
Back-to-Front（P2C） |
Operating Temperature |
32°F to 95°F (0° to 35°C) |
Storage Temperature |
-40°F to 158°F (-40ºC to 70ºC) |
Dimensions (Hx Wx D) |
1.7"x 17"x 26"(43.6x 438x 660mm) |
Rack Units
|
1RU |
