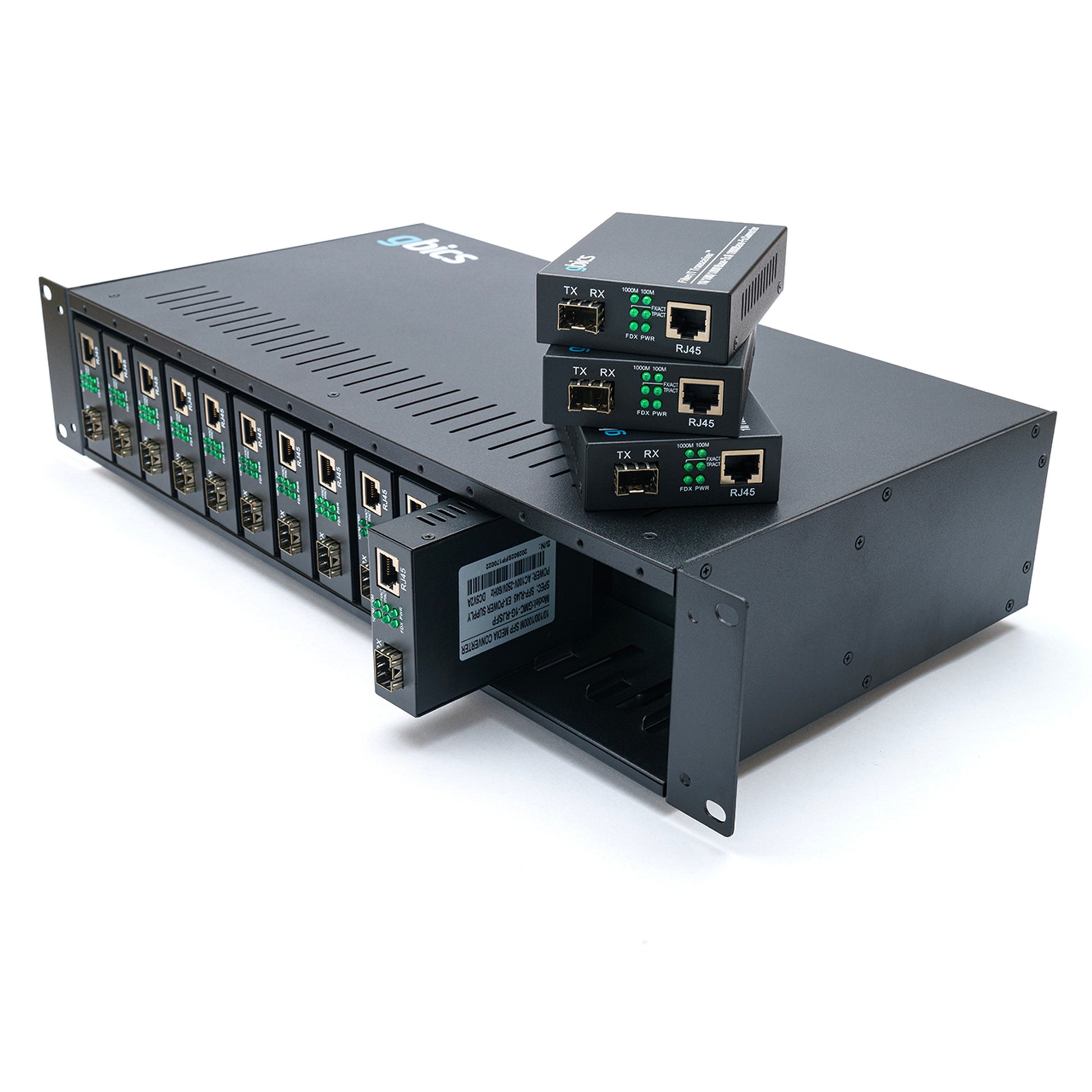

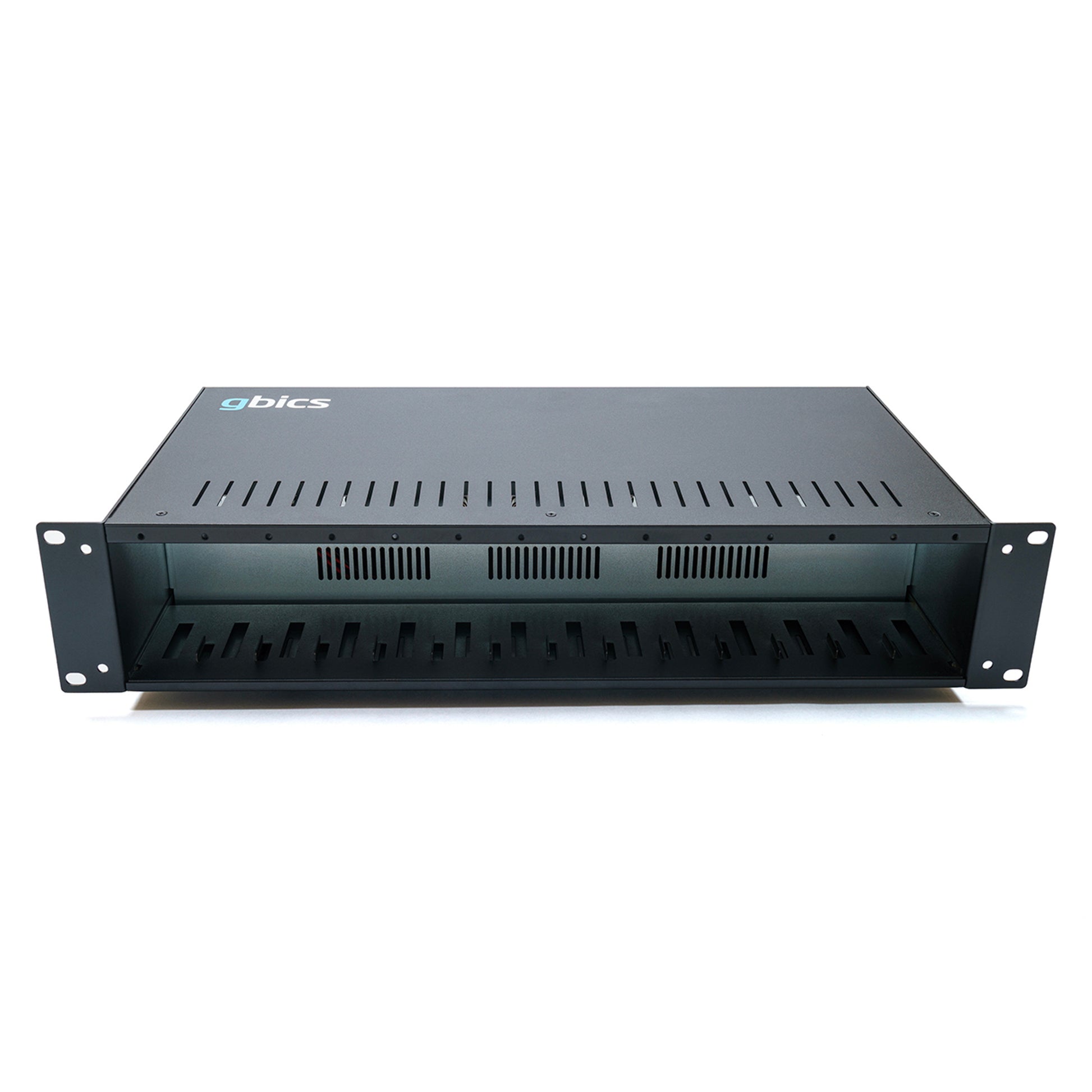

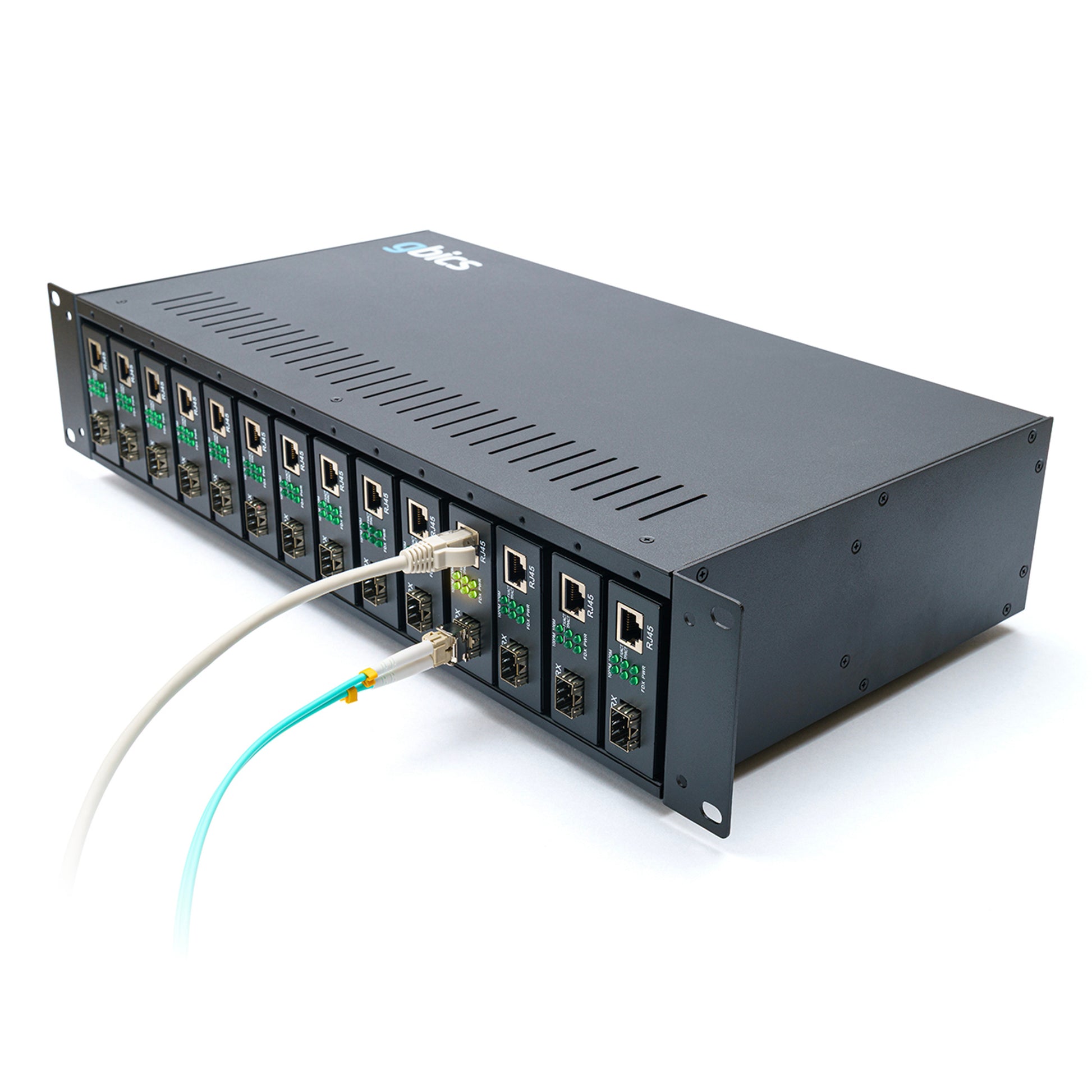

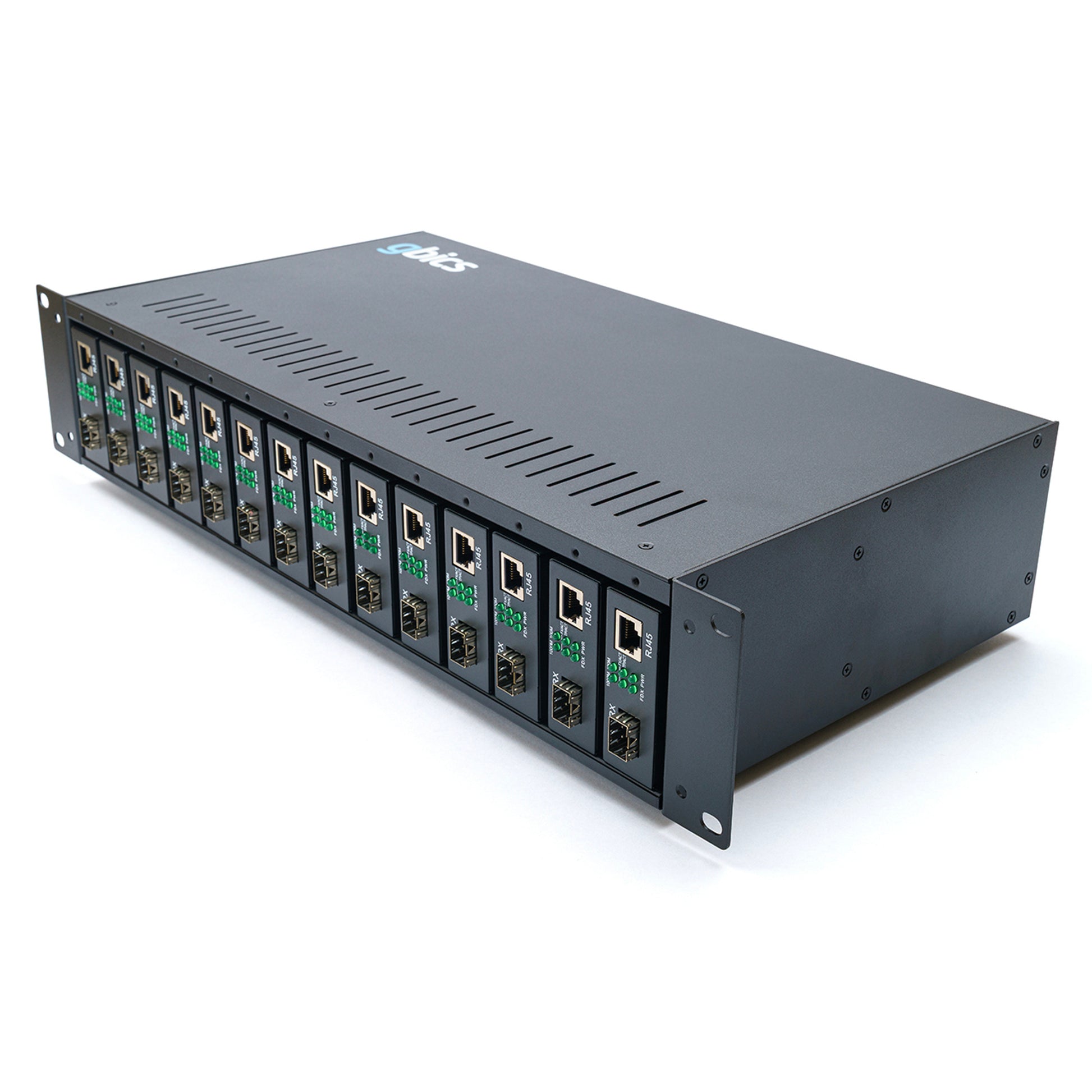

GMC-CHASSIS-14 Media Converter 14 Slot Rack-Mount Chassis
Power up to 14 media converters and simplify links and overall structure.
- 14-slot chassis for GBICS GMC range of media converters.
- Easy setup, management and maintenance.
- Supports hot-swap converter modules.
- Works with a wide range of voltage.
- Includes dual redundant hot swappable power supplies.
Power multiple media converters
One power source for your many media converters. This converter chassis can supply power to up to 14 media converters.
Only using one power source also frees up space and simplifies links and structure. (Media converters must be ordered separately)
Simple setup and management
Headache free installation and operation.

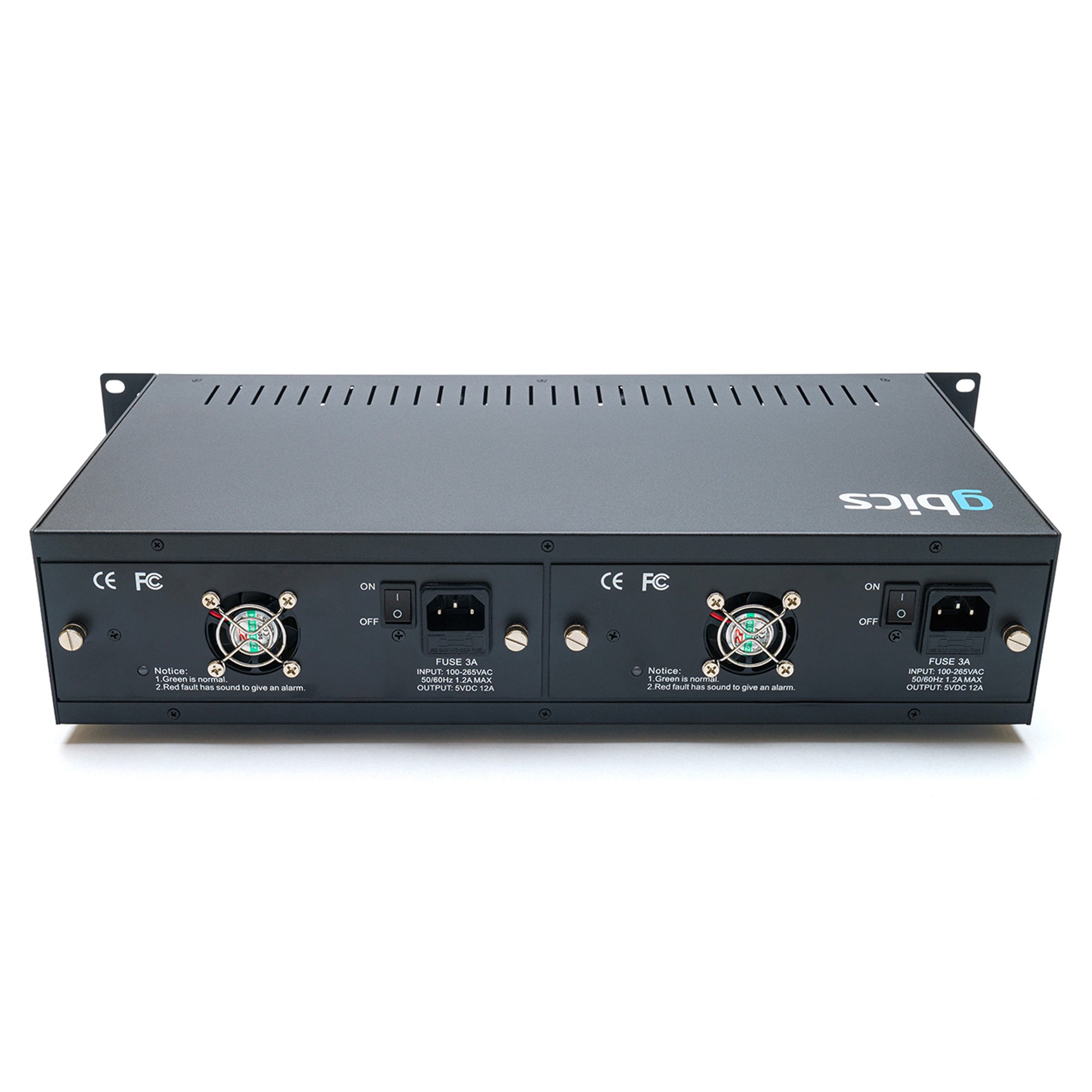

Redundant power
Chassis features dual redundant hot swappable power supplies, 100-260VAC auto-ranging input voltage.
Number of Slots - 14
Compatible Media Converters - GMC-1G-RJSCMM2, GMC-1G-RJSCSM20, GMC-1G-RJSFP (Not included)
Compatible Media- 10/100/10 00B AS E-TX: CAT5 UTP/STP, m a x. 328 ft. (100 m); 1000BASE-FX
Approval - CE, RoHS
Power -
Dual Power supplies included: (1) LHGC-RACK-PS-L and (1) LHGC-RACK-PS-R;
AC 100 V~260 V input voltage, 5VDC 12A 60w output;
Circuit breaker for overvoltage or short circuit protection
Temperature-0°C to 50°C
Size - 8,89 x 48,5x23,1 cm (3.5"H x 19.1"W x 9.1"D)
Weight - 7 kg (15.4 lb.)
