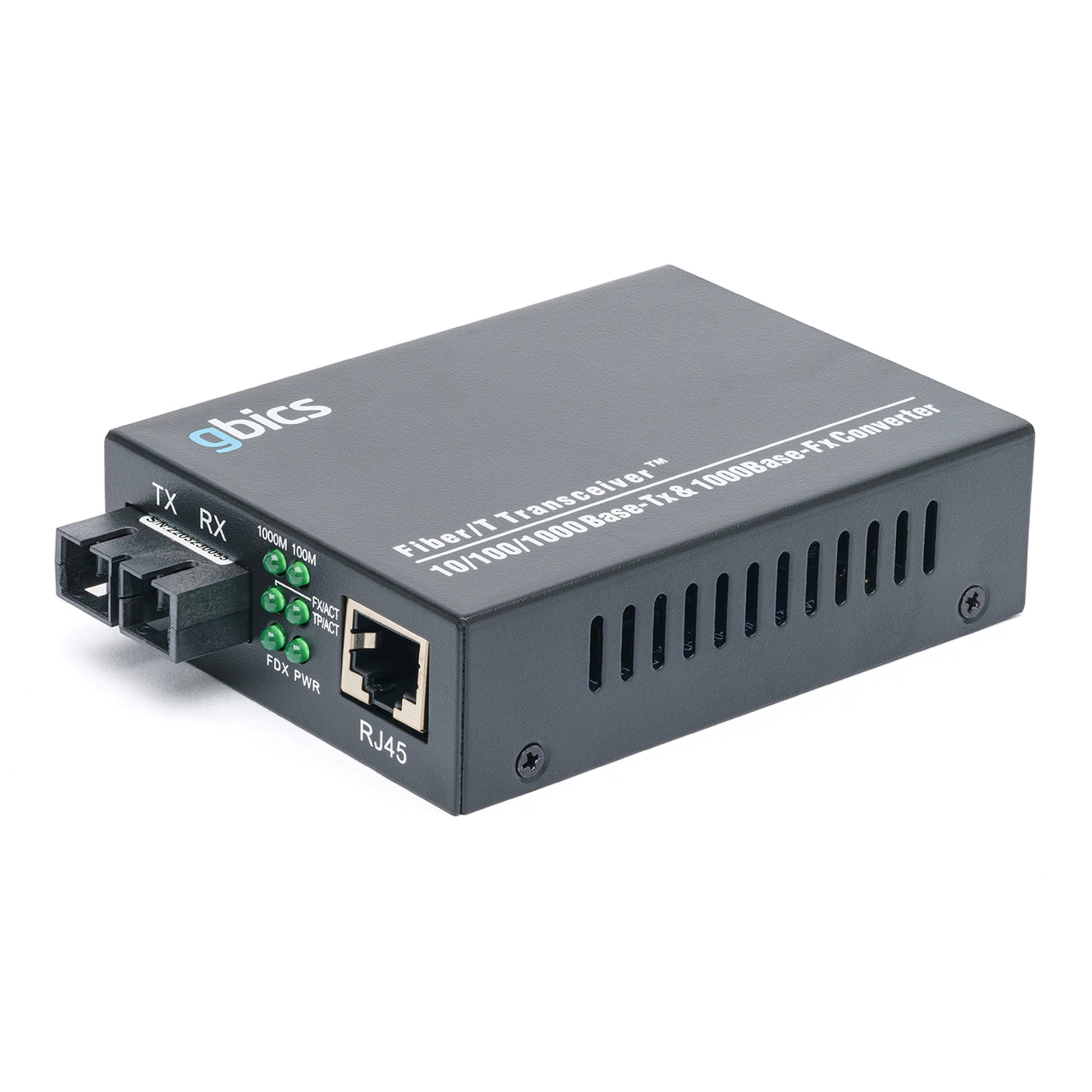

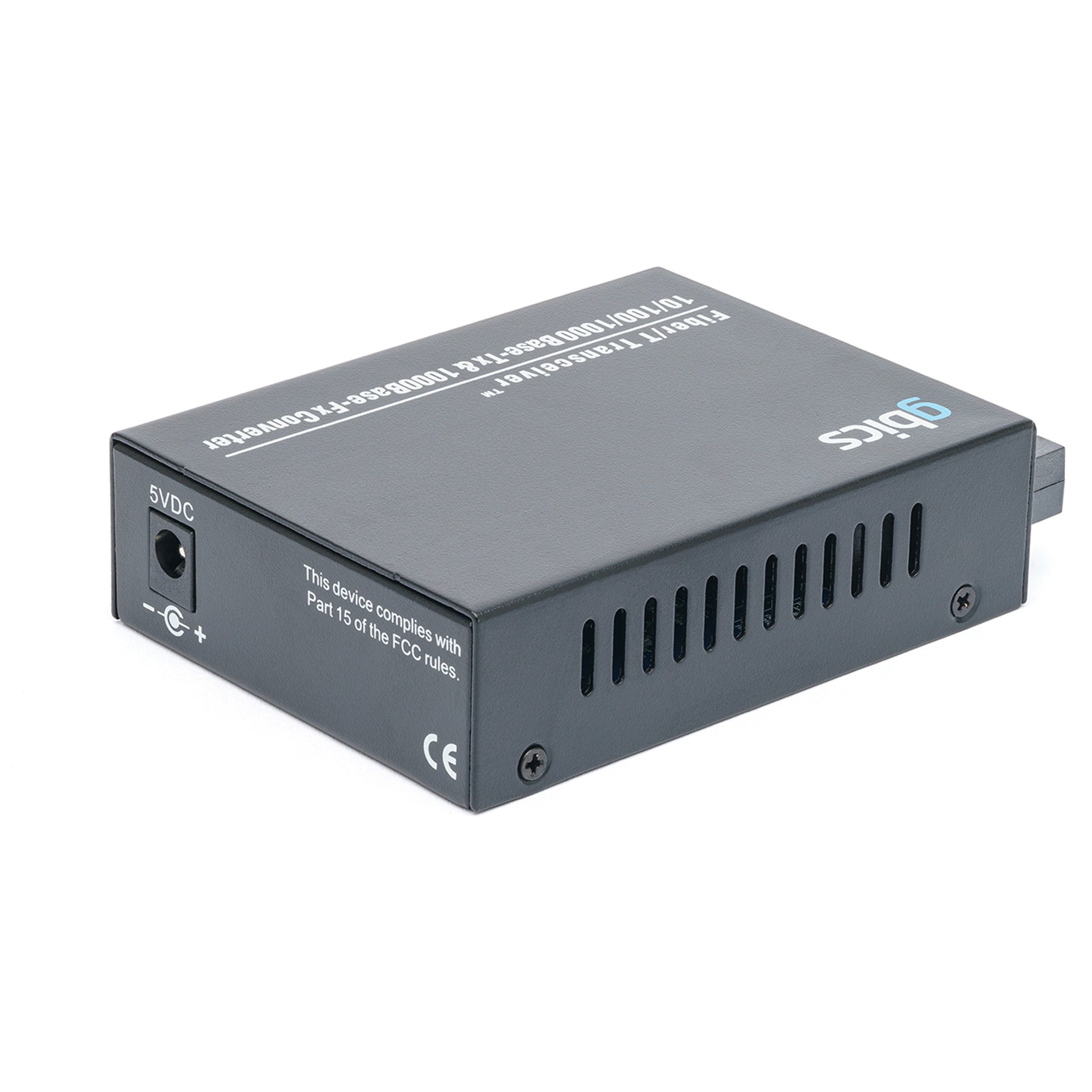

GMC-1G-RJSCSM20 - 10/100/1000BASE-T RJ45 to 1000BASE SMF SC 20km Media Converter
GMC-1G-RJSCSM20 - 10/100/1000BASE-T RJ45 to 1000BASE SM SC 20km Media Converter
GBICS Media and Rate Converters transparently connect copper to Single mode fibre. It also automatically detects if the copper port speed is 10Mbps, 100Mbps, or 1G and does a rate conversion to 1G if the fibre port speed is different. These 10/100/1000 Ethernet to Gigabit Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fibre based equipment, or the distance between two devices.
Product Specifications
Ports: 1 x 10/100/1000Mbps RJ45 Copper, 1 x 1000Mbps Singlemode SC
Standards: IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IE
EE802.1d
Wavelengths: 1310nm
Supported Distance: 20km
Conversion Method: Media Conversion
Time Delay: <10μs
BER: <1/1000000000

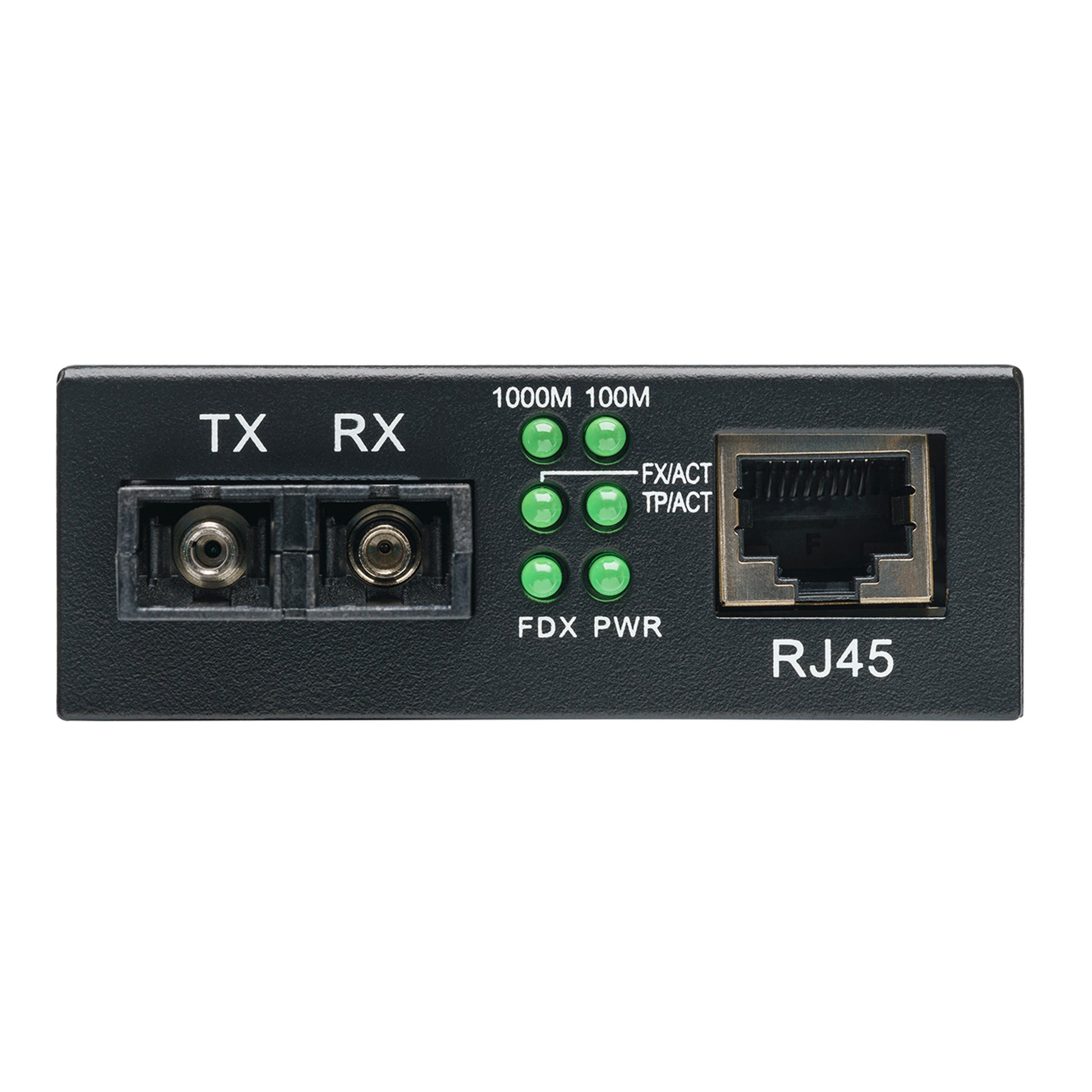

LED Indicator Lamps: 1000M ,100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER
Power Supply: DC5V 1A (external power), AC220 0.5A /DC-48( internal power )
Power Dissipation: 3W
Operating Temperature: 0 ~ 50 ℃
Humidity: 5%~90%
Storage Temperature: -40~ 70 ℃
Dimension: External: 94mmx70mmx26mm; Internal: 140mmx110mmx30mm
