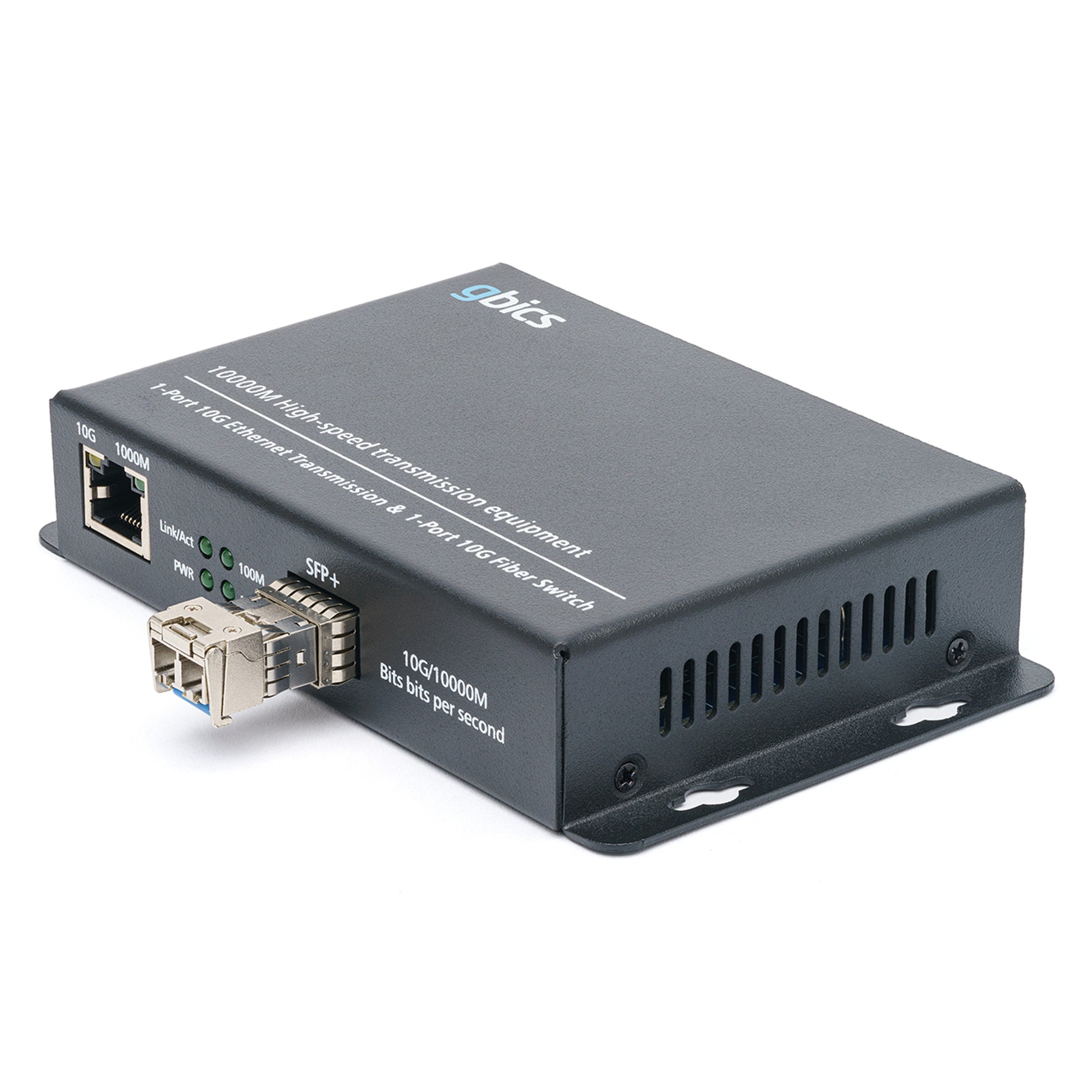

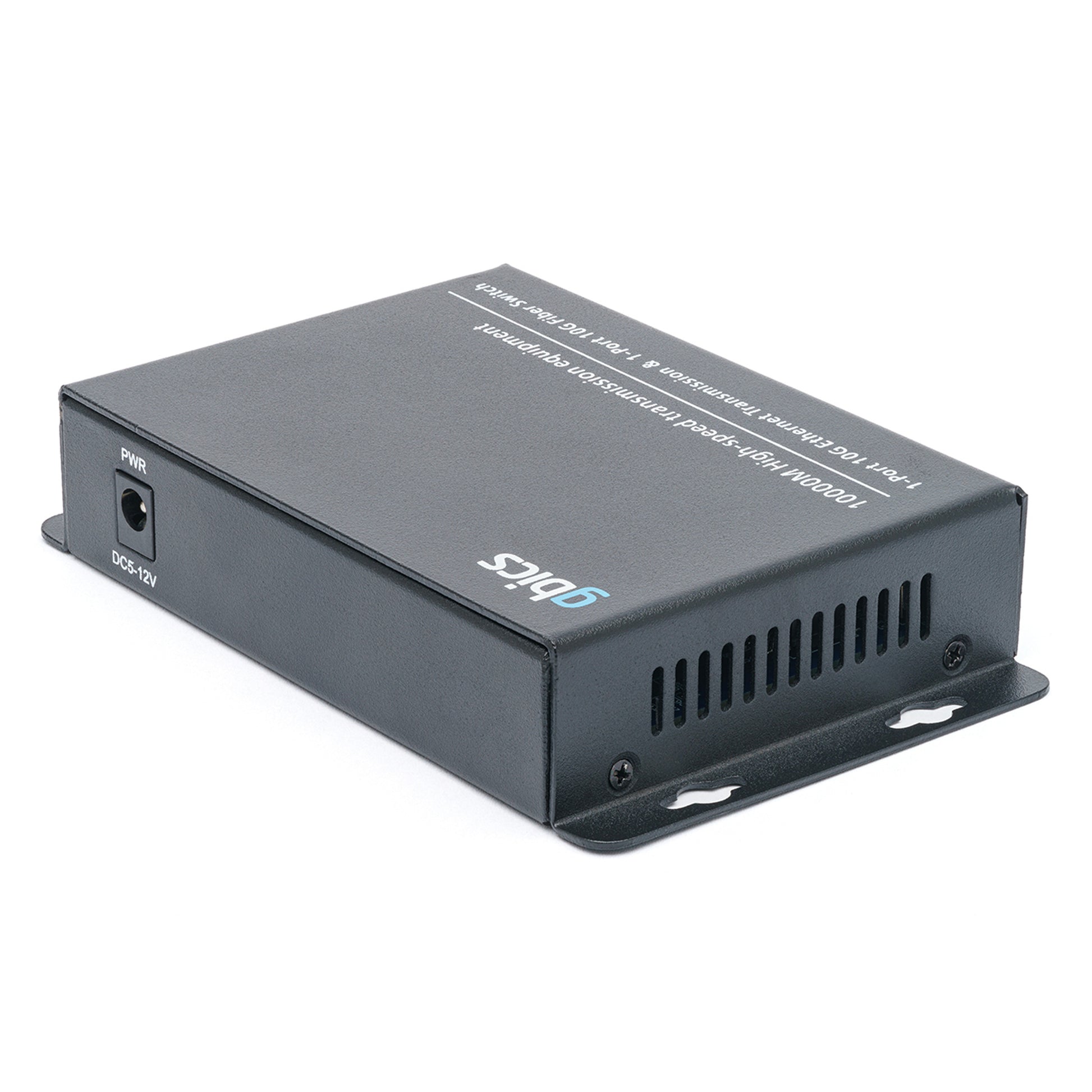

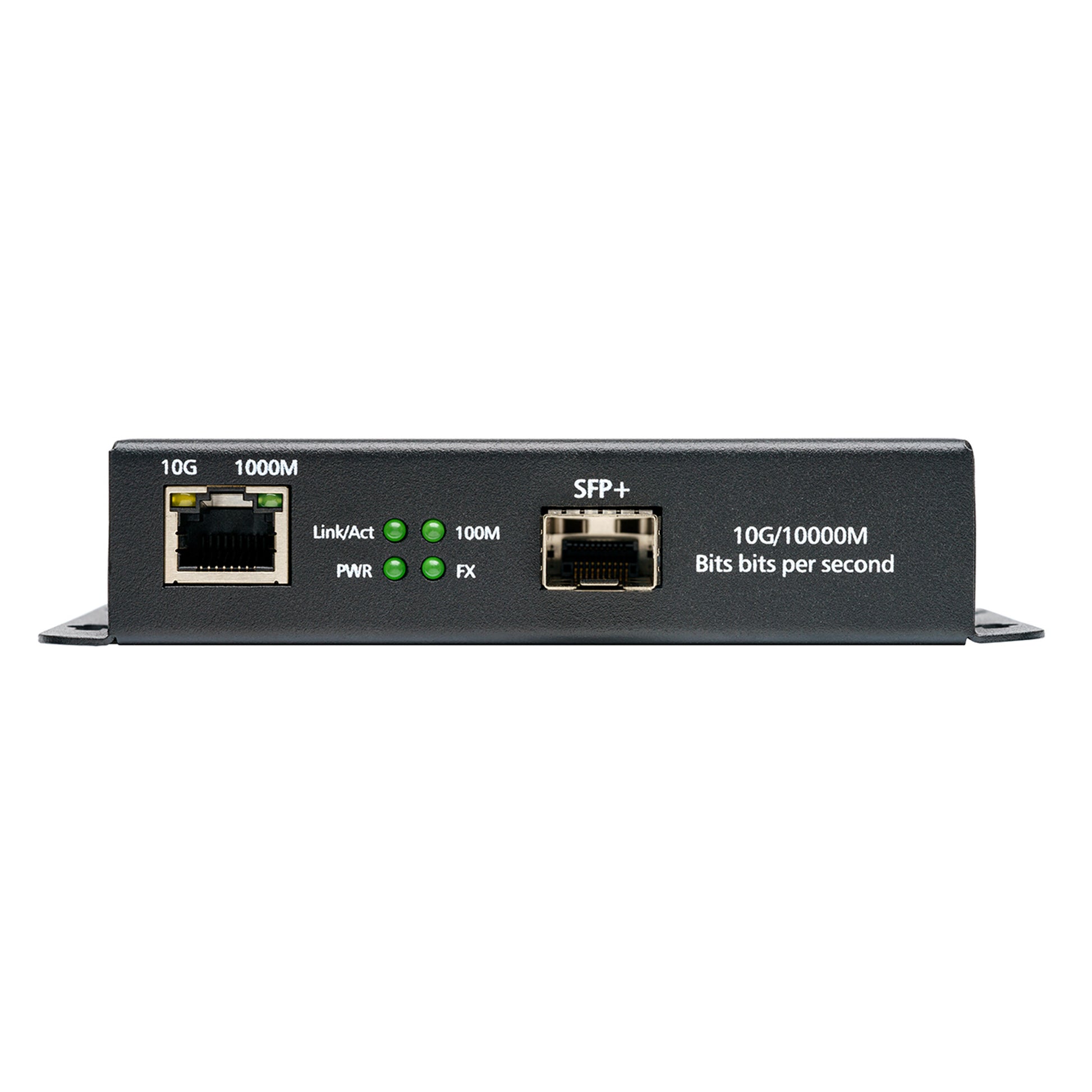

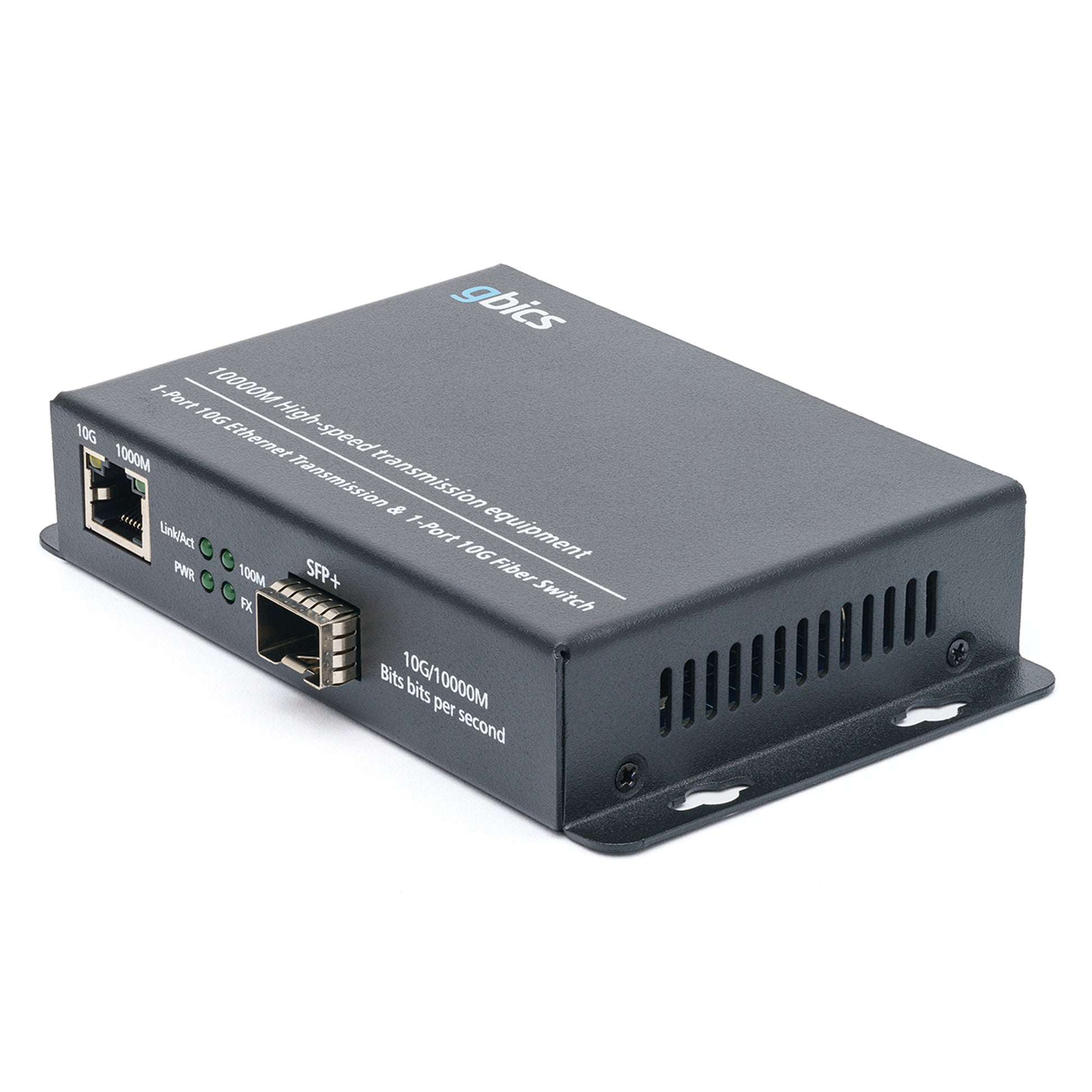

GMC-10G-RJSFPP - 1/10GBASE-T RJ45 to 1/10GBASE-SR/LR SFP+ Media Converter
GMC-10G-RJSFPP - 1/10GBASE-T RJ45 to 1/10GBASE-SR/LR SFP+ Media Converter
GBICS 10GbE Media Converters transparently connect 10 Gigabit Ethernet links over multimode or single mode fibre. Each 10G Media Converter comes with pluggable transceiver ports that support fibre to fibre, copper to fibre or copper to copper media conversion.
The GBICS GMC-10G-RJSFPP 10G Unmanaged Media Converter with a SFP+ & RJ45 port is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network.
This fibre media converter can convert from short-distance 10GBase-TX signals to long-distance 10GBase-FX optical signals. The extension of 100m to 120km greatly extends the transmission distance of Ethernet, and it also has the advantages of isolation protection, good data security performance, superior work stability, and easy maintenance.
Product Specifications
Ports: 1 x 100/1000/10000Mbps RJ45 Copper, 1 x 10 Gigabit SFP+ Port
Standards: IEEE 802.3, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i, IEEE 802.3ab
Wavelengths: 850nm/1310nm/1550nm and CWDM/DWDM
Supported Distances:
SFP+ MM: 300m
SFP+ SM: 10/20/30/50/80Km
SFP+ SM: 20/40/60Km,
CAT5: 30m
Conversion Method: Media Conversion
Time Delay: <10μs
BER: <1/1000000000
LED Indicator Lamps: 1000M, FX LINK/ACT, FX, POWER
Power Supply: DC5V 1A (external power), AC220 0.5A /DC-48( internal power )
Power Dissipation: 3W
Operating Temperature: 0 ~ 70 ℃
Humidity: 5%~90%
Storage Temperature: -40~ 85 ℃
Dimension: External: 134mmx82mmx27mm
